What Makes Sochain Precision a Reliable Partner/Supplier for Acrylic (PMMA) Machined Parts

At Sochain Precision, we plan acrylic machining around material behavior, not just geometry. Our engineers pay close attention to managing stress impact, heat, and edge quality to come up with clear, stable, and assembly-ready parts in minimal turnaround.

Here are our benefits that make us stand out from other competitors

Controlled Cutting to Prevent Cracks

Acrylic parts usually crack during CNC machining due to uncontrolled cutting forces. To prevent internal stress and edge fractures, we employ sharp tools, adequate spindle speeds, and low-stress toolpaths.

Clean Edge Quality for Visual Parts

Acrylic parts require an edge finish. Therefore, our team controls feed rates and finishing passes to mitigate chip formation. Edges are polished where necessary to obtain clear and smooth surfaces to be displayed.

Heat Management During Machining

PMMA is heat sensitive, and it can melt away or deform. Thus, we set cutting parameters and air cooling at the necessary points to eliminate edge melting and surface marks.

Tight Tolerance on Critical Features

We control the critical dimensional features like holes, slots, and mating edges. This guarantees good fitment when assembling acrylic parts with other components.

Machining and Polishing in One Flow

Machining and finishing are done concurrently, usually in one step. This prevents any damage and manipulation and maintains the surface quality between raw cutting and the final part.

Support for Different Acrylic Grades

Our factory sources clear, colored, and specialty PMMA materials from certified suppliers. All such types are treated according to their behavior to preserve clarity, strength, and surface quality.

Practical DFM Support Before Production

Once you submit your design, our team carefully reviews your design. We normally suggest keeping a simple design and minimizing sharp edges, slender edges, and stress points. This allows us to avoid cracking when being machined and enhances part reliability in their intended use.

Acrylic (PMMA) Types We Use

The table includes the common acrylic grades available for machining at our factory:

Material	Common Form	Machining Behaviour	Typical Parts

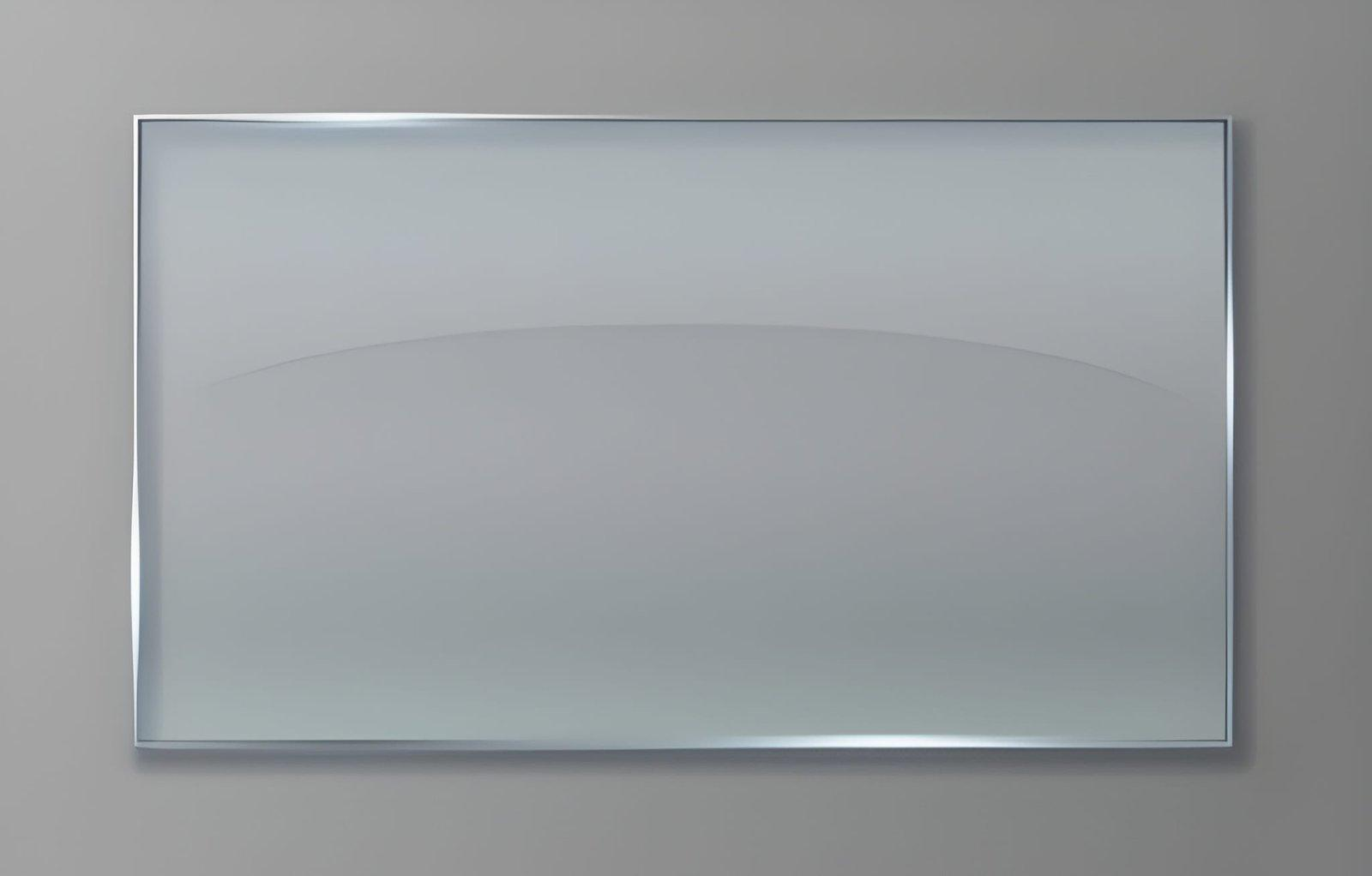

Cast Acrylic (Cell Cast)	Sheets, blocks	Better surface finish, less internal stress, machines clean with low cracking risk	Optical parts, display panels, polished components
Extruded Acrylic	Sheets	Lower cost, softer, more prone to melting and edge burrs during cutting	General covers, non-critical visual parts

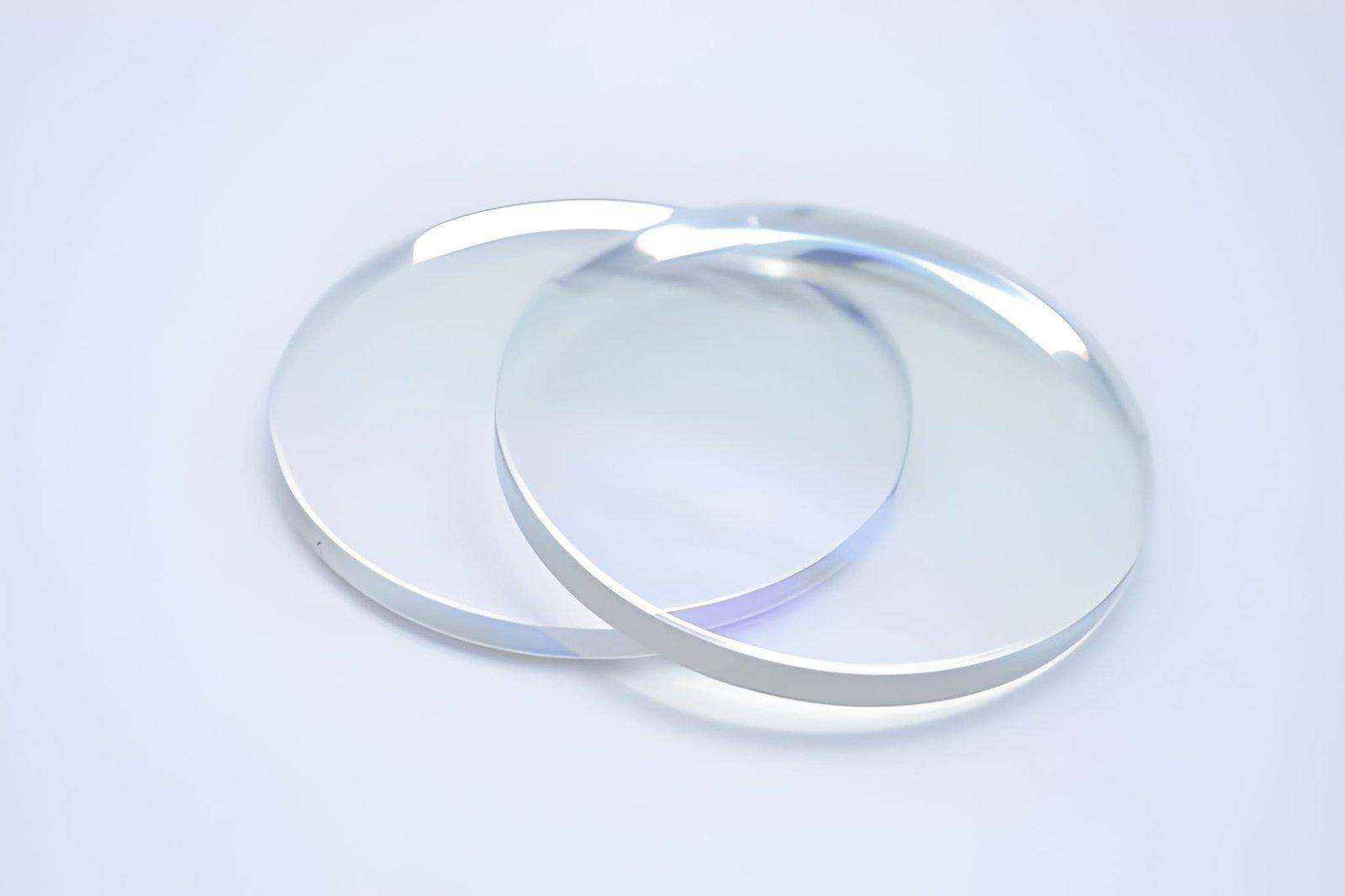

Optical Grade Acrylic	Sheets, blocks	High clarity requires controlled cutting and polishing to avoid distortion	Lenses, light guides, high-clarity covers
Impact-Modified Acrylic	Sheets	Improved toughness, slightly reduced clarity, stable during machining	Protective covers, machine guards
UV-Resistant Acrylic	Sheets	Maintains clarity under sunlight, similar to cast acrylic	Outdoor displays, signage, covers
Colored Acrylic	Sheets	Pigmented material, machining must control the edge finish for appearance	Decorative panels, branding parts
Frosted / Matte Acrylic	Sheets	Surface already textured, requires careful handling to avoid marks	Diffusers, display surfaces

In case your application needs a particular grade, thickness, or optical performance, you can provide your needs to Sochain Precision. We will discuss your part and advise on the best acrylic material and machining options.

Industries We Serve with Acrylic (PMMA) Machining

Acrylic parts are used when visibility, appearance, and precise fit are of the essence. At Sochain Precision, we serve various sectors. Each industry has its unique demand and requires parts free from cracking, poor light output, or any misfit during assembly.

Here are the common industries we provide our services to.

Electronics and Electrical

In electronic products, acrylic components must remain compatible with internal components and be easily visible over displays and indicators. The edge quality or incorrectly aligned cutouts can influence assembly and functionality.

The common part examples include:

Protective Screens and Display Covers

Light Directs

LED sheaths

Control Panels and Interface Windows

Laboratory and Medical Equipment

Clarity and surface condition impact visibility and hygiene in medical use. Micro-cracks or jagged edges may cause failure when used, and risk of contamination. We often machine the following parts for medicare use:

Shields and Guarding

Sample Trays and Holders

Clear Stands of Instruments

Automotive and Transportation

Car components not only require good aesthetics and looks, but they also must entail a precision fit as well. Light covers and interior features should be precise enough to keep uniform thickness and surface finish to avoid distortion and ineffective light diffusion.

We typically produce:

Light covers and DiffusersDashboard Panels and TrimsInterior Protective Components

Display Systems and Retail Systems

Surface finish is directly related to product presentation for display applications. Scratches, haze, and broken edges normally reduce the visual quality and perception among customers.

At our factory, we usually use:

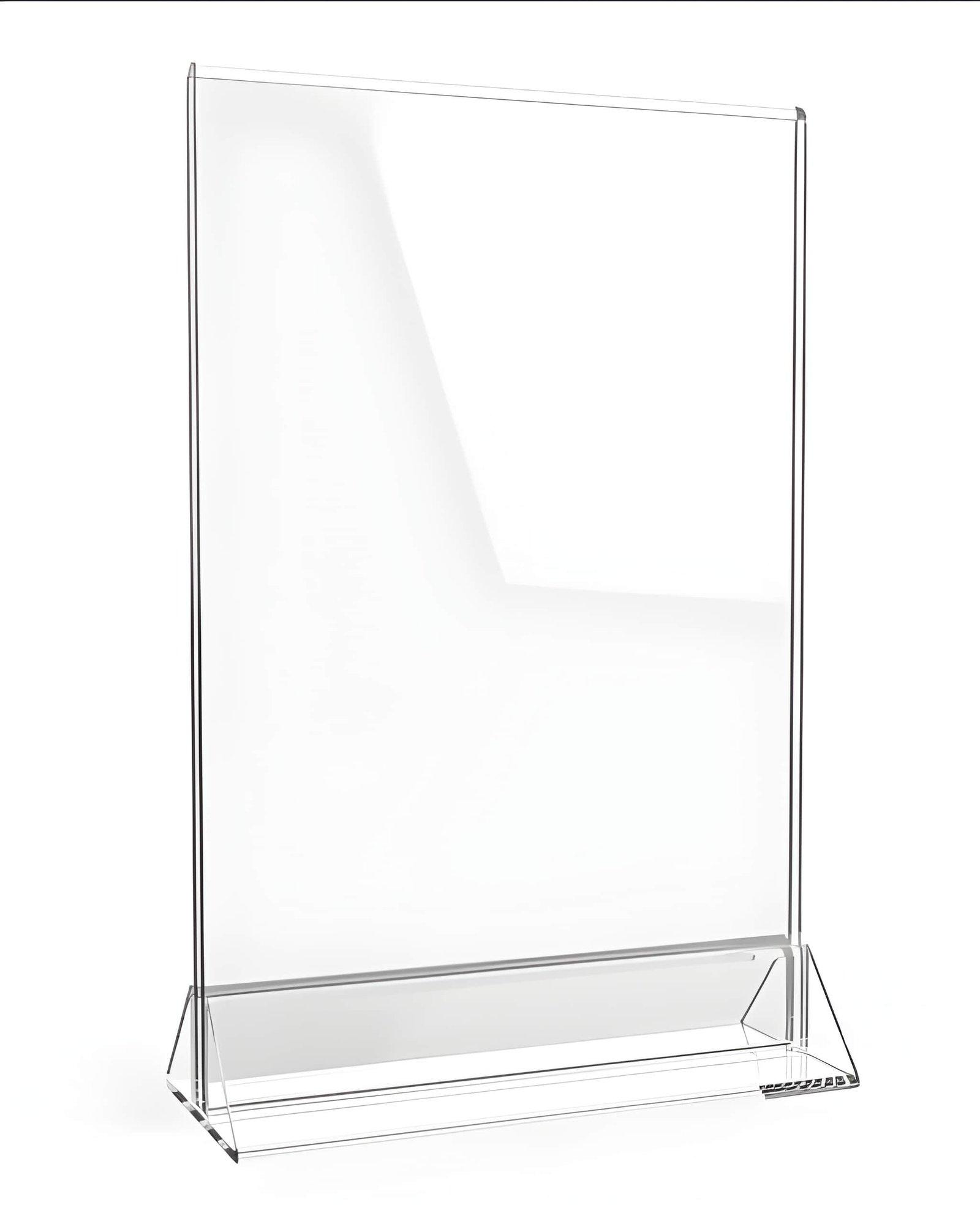

Plastic Displays and StandsBranding Elements and SignageProduct Holders and Covers

Industrial Equipment

Machine parts and equipment must provide clear visibility without compromising strength. Poor machining can lead to cracks under load and during installation.

Machine Guards and Safety CoversInspection WindowsControl Panel Covers

Lighting and Optical Applications

Light performance depends on surface quality and internal clarity. Machining marks and uneven surfaces can reduce light transmission and create visual defects. Some of the common parts include

Optical Covers and LensesLight Diffusers and GuidesTransparent Protective Housings

If your application has specific visual requirements, you can send us your design. Our team will review your design and recommend the right machining approach before production commencement.

Surface Finishes for Acrylic (PMMA) Parts

As-machined finish
Flame polishing
Mechanical polishing
Vapor polishing
Sanding (fine grit)
Bead blasting (matte finish)
Frosted finish
Laser polishing
Buff polishing
Anti-scratch coating
Anti-glare coating
UV-resistant coating

Machining Techniques We Use for Acrylic (PMMA)

The following techniques are employed at our facility for machining custom acrylic (PMMA) parts.

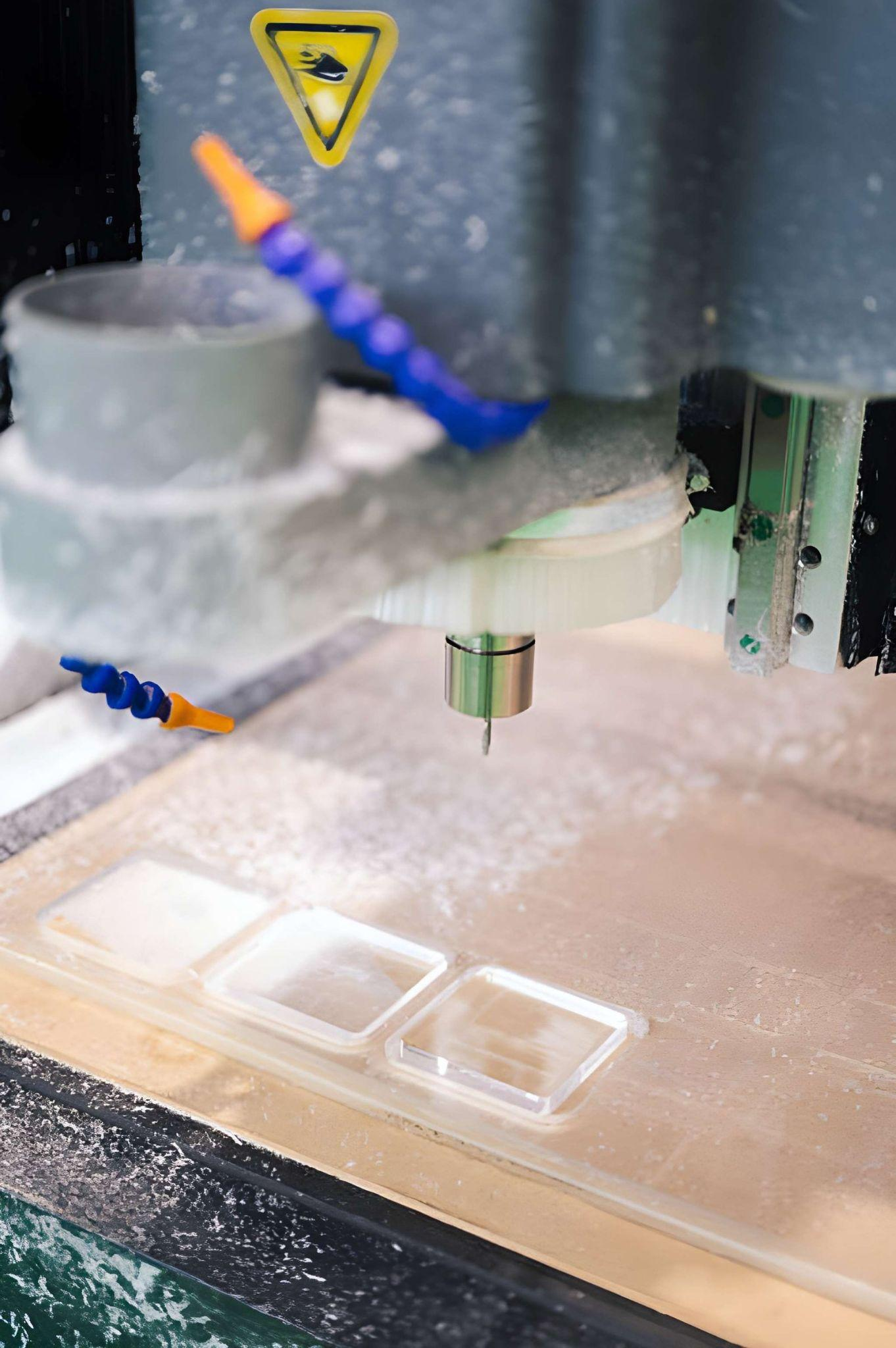

CNC Milling

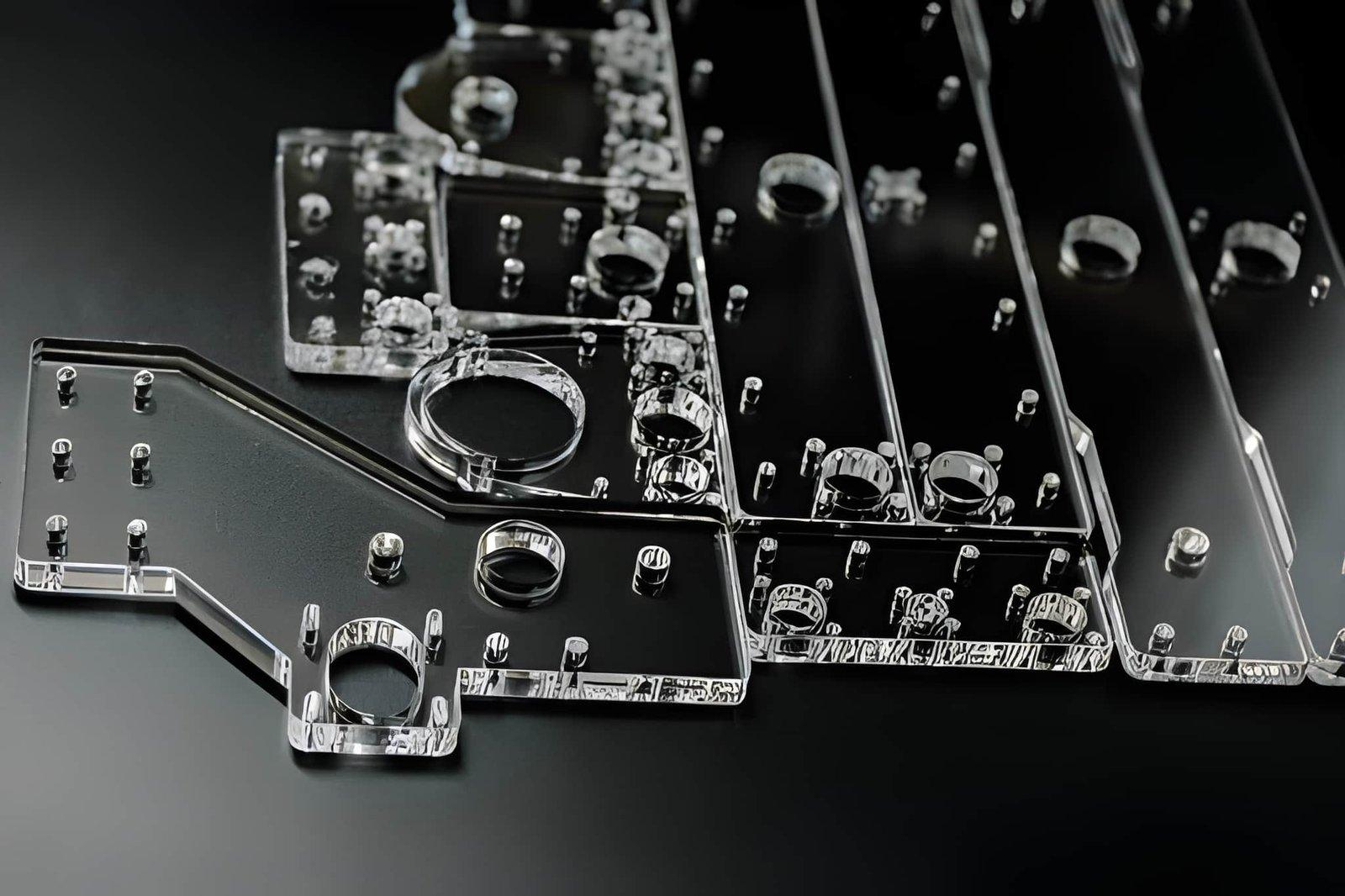

CNC milling is applied where flat surfaces, pockets, and stepped features need to be controlled in one setup. It is a viable option for parts that need accurate cutouts and consistent depth without stressing the material.

Display Panels with OpeningsEnclosures with Internal CavitiesPlates with Slots and Features

CNC Turning

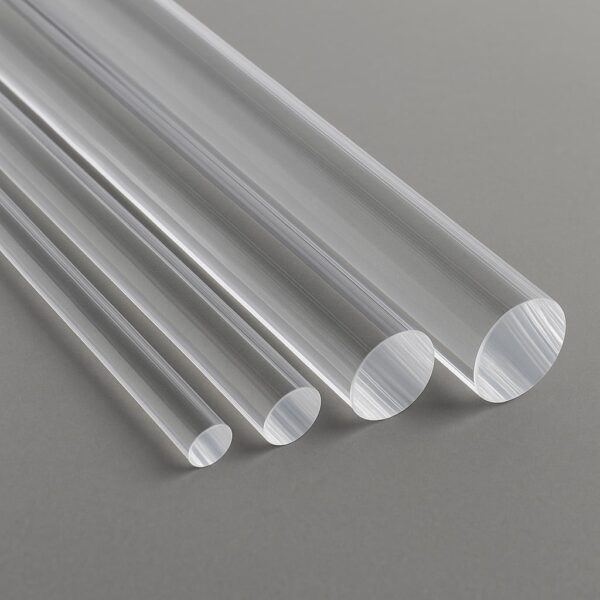

CNC turning is used for slender or round parts. It is important when you need a consistent diameter and surface finish along the part length. Moreover, it aids in keeping the right balance and even outer surfaces of cylindrical parts. It normally applies to

Tubes and sleeves
Round housings
Optical component bodies

High-Speed Routing

CNC routing is favored with sheet-based parts, where bigger profiles must be cut effectively without leaving their edges unclean. It is commonly applied before secondary finishing. We normally shape:

Large Panels
Signage and Covers
Flat Profile Parts

Drilling and Reaming

Hole-making is done based on assembly fit requirements. The base hole is drilled and reamed when a part needs a precise fit and tolerance, and smoother internal surfaces.

Clearance and Mounting Holes
Alignment Features
Precision Fit Holes

Tapping (Low-Stress Threading)

Acrylic threading is a critical step; thus, it requires care to prevent cracking. For fastening, low-stress tapping methods are used, especially in thicker parts.

Threaded mounting points
Locations of fasteners in panels.
Light-duty threaded features

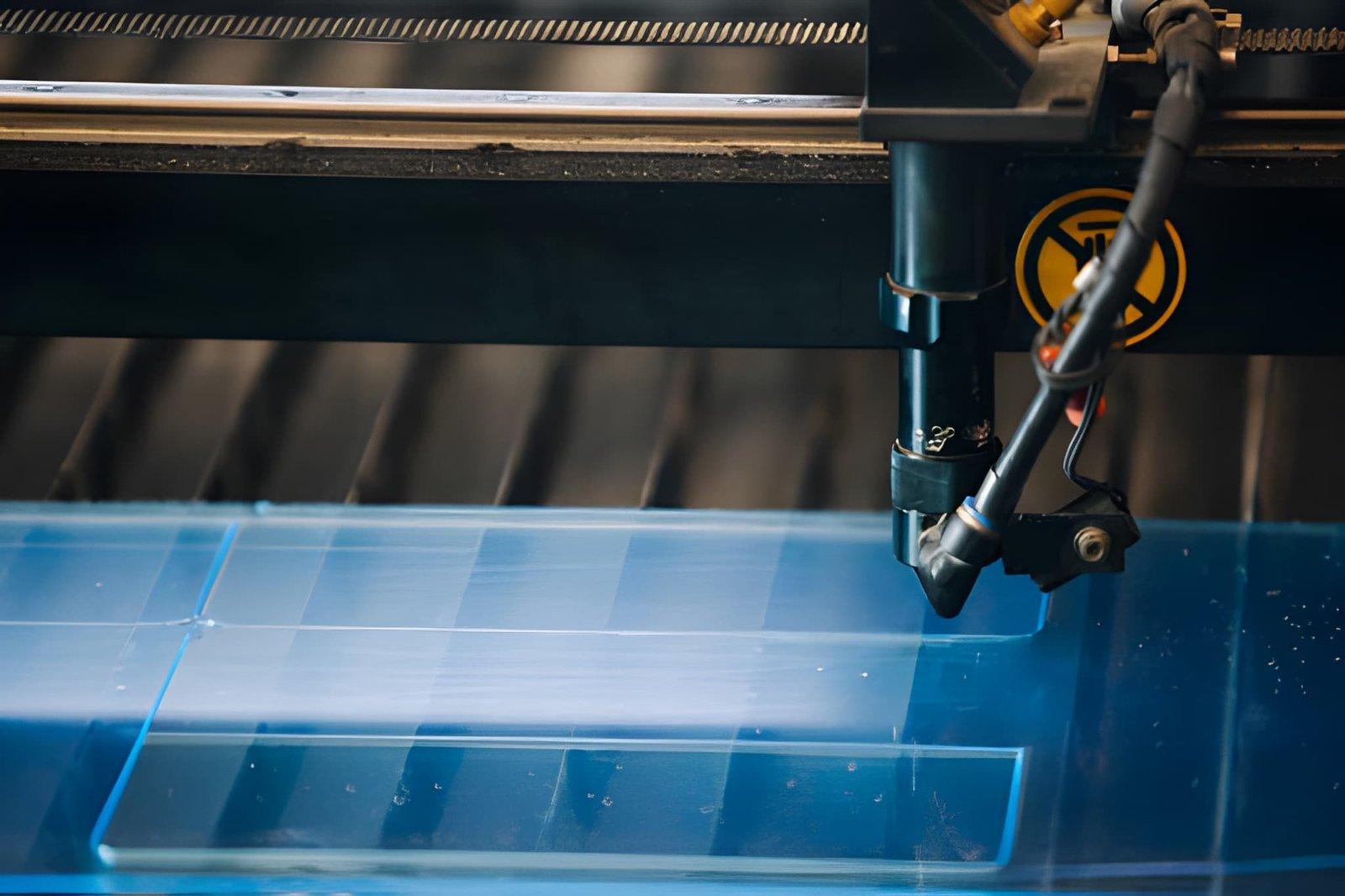

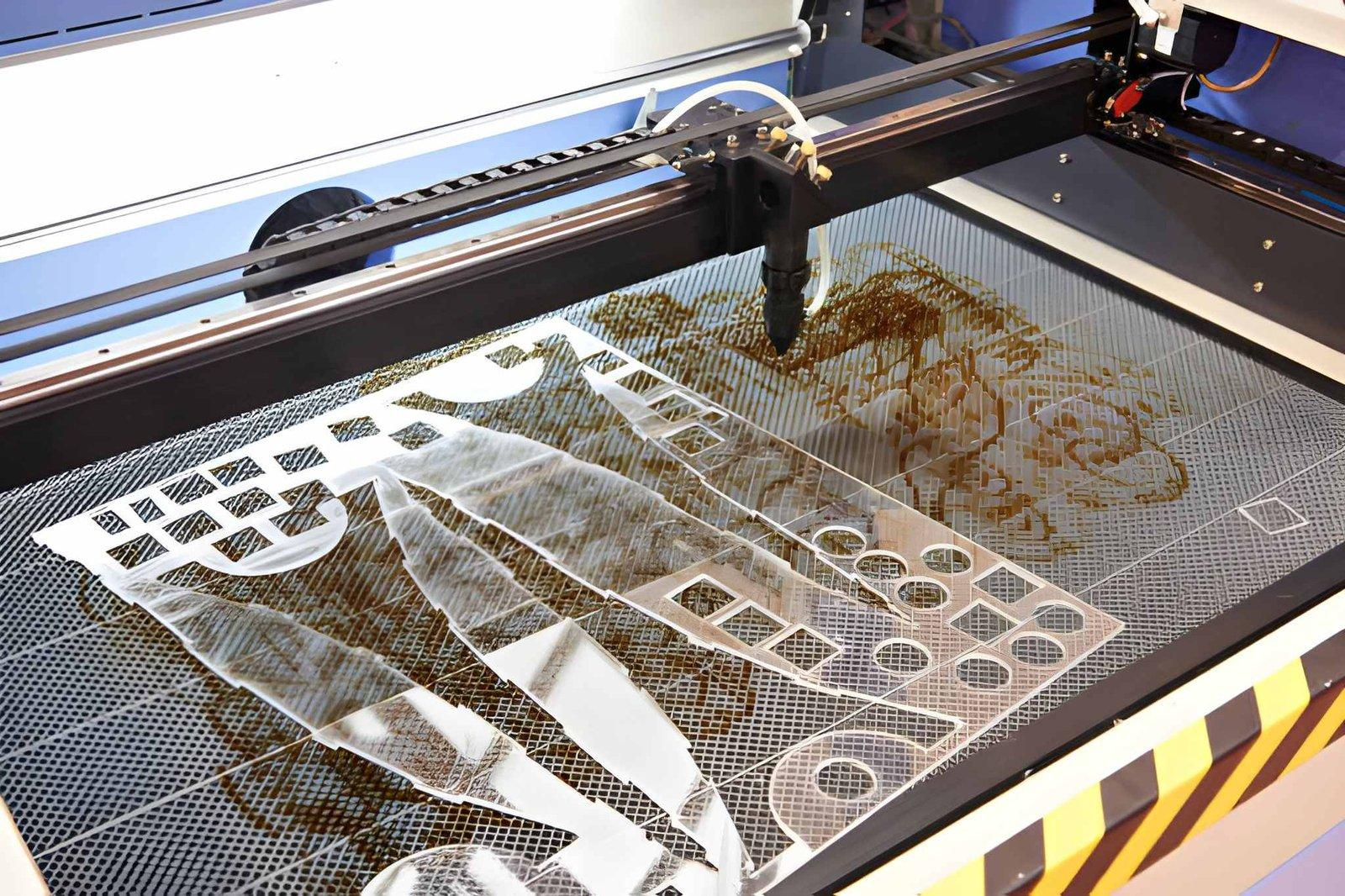

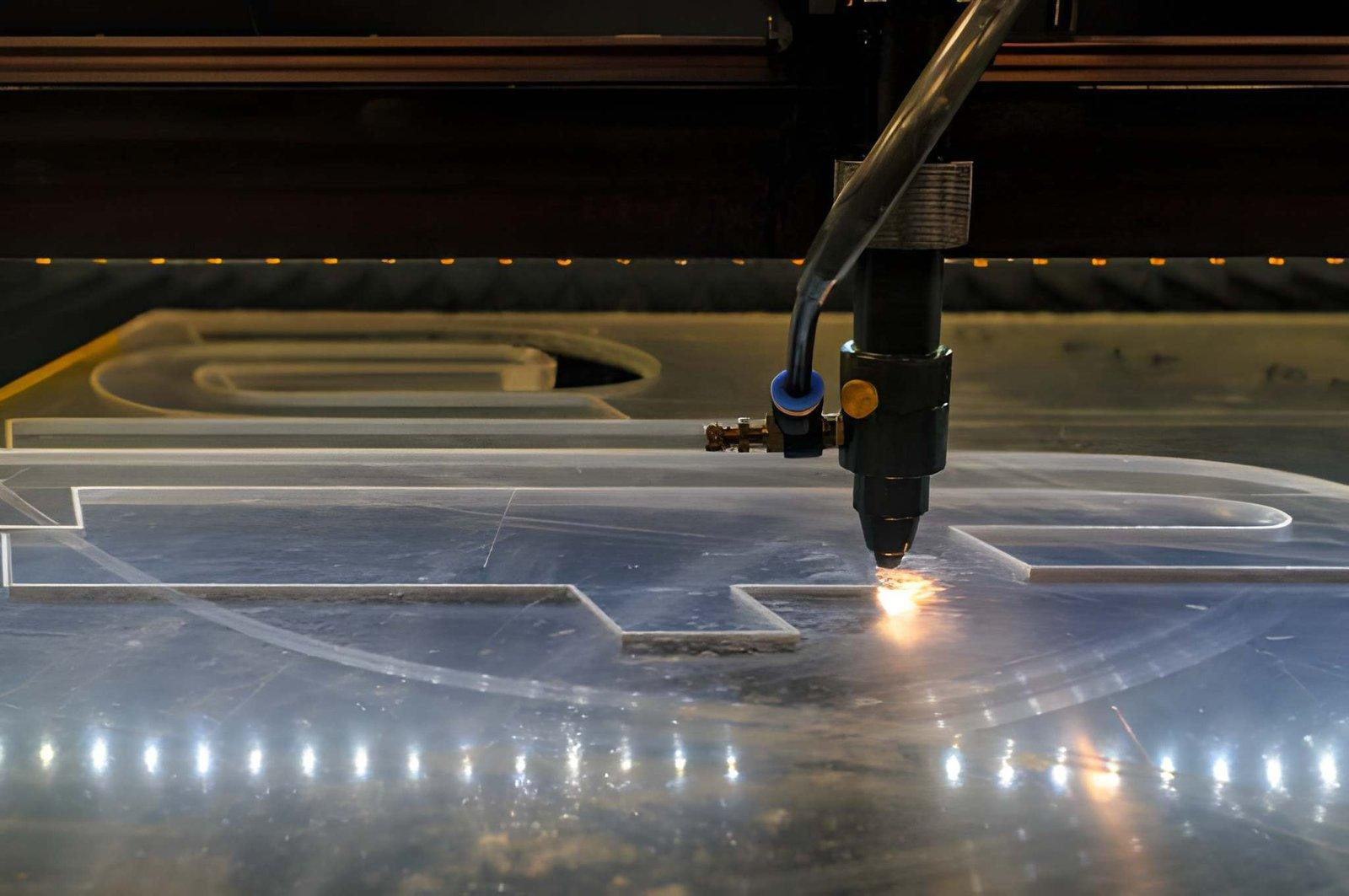

Laser Cutting

Laser cutting is applied to thin sheets with detailed geometry. It allows fine shapes and small features, though parameters are controlled to prevent edge melting.

Thin covers and panelsDecorative componentsDetailed cut patterns

Engraving

Engraving is used for surface marking without affecting part structure. It is commonly applied where identification and interface markings are needed.

Labels and Text
Branding Panels
Control Markings

Slotting and Pocketing

Material is removed in defined areas to create space for components or reduce weight. This is planned to avoid sharp internal corners that may cause stress.

Internal Cavities
Cable and Ventilation Slots
Component Housing Areas

Profile Cutting

Profile cutting determines the external/outer shape of the part. Edge consistency is maintained to ensure proper fit during assembly.

Custom-Shaped Panels
Covers and Outer Profiles
Structural Outlines

Get Custom Acrylic (PMMA) Parts from Sochain Precision

Custom acrylic parts often fail due to cracking, poor edge quality, and dimensional mismatch during assembly.

At Sochain Precision, each design is reviewed before machining to address these risks early. The choice of cutting strategy, edge finishing, and material type depends on the application to make the part, as a visual aid, a structural aid, or a light conductor.

Controlled machining and finishing are provided in a single process flow for both prototype and batch production. This serves to keep the consistency between the initial section and full production, particularly when it comes to parts that have to be given clean edges and a perfect fit.

Share your drawing or CAD file to get feedback about machining feasibility, lead time expected, and cost.

FAQs

Why do acrylic parts crack during machining or after assembly?

Internal stresses due to cutting or sharp internal corners usually cause cracking. This is controlled through appropriate cutting parameters, no aggressive toolpaths, and the corner radius of the design. It is also dependent on the type of material, particularly between cast and extruded acrylic.

How is edge clarity maintained for display or optical parts?

The part edge quality is based on machining and surface finishing. Once cut, edges are finished with polishing techniques like flame or mechanical polishing. This eliminates tool traces and improves the transparency where it is needed.

Can tight tolerances be maintained on acrylic parts?

Acrylic is sensitive to heat and cutting force, which can affect dimensions. Tolerances are controlled by adjusting cutting parameters and using stable setups. For critical features, finishing passes and inspection steps are applied to maintain accuracy.
